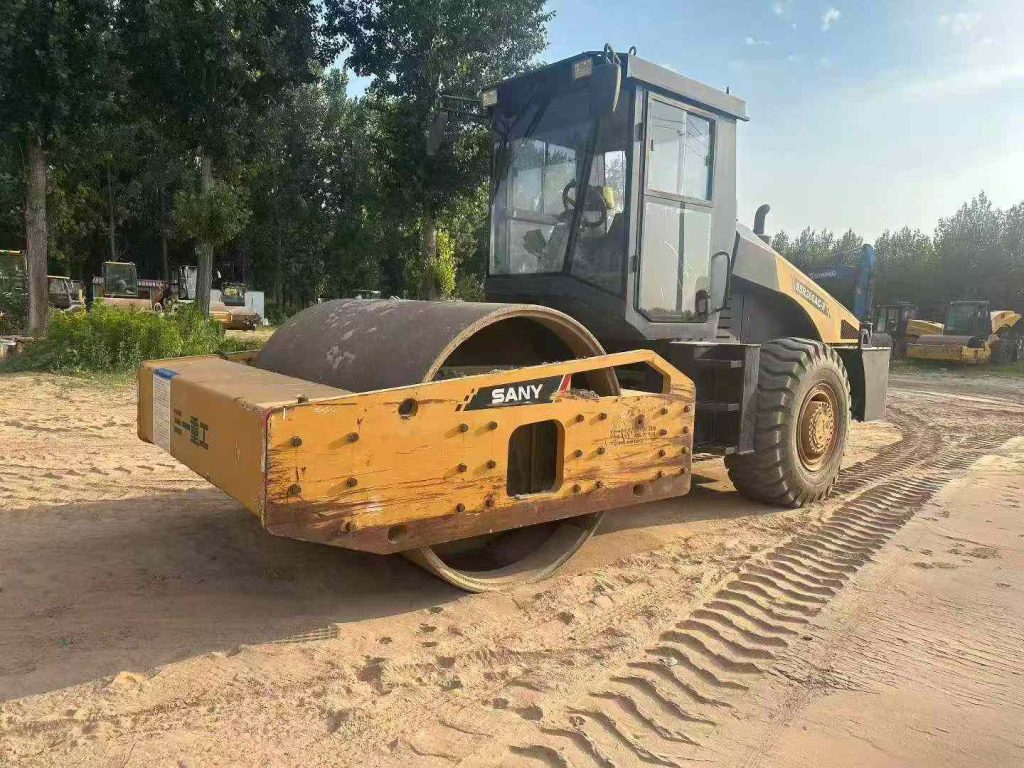

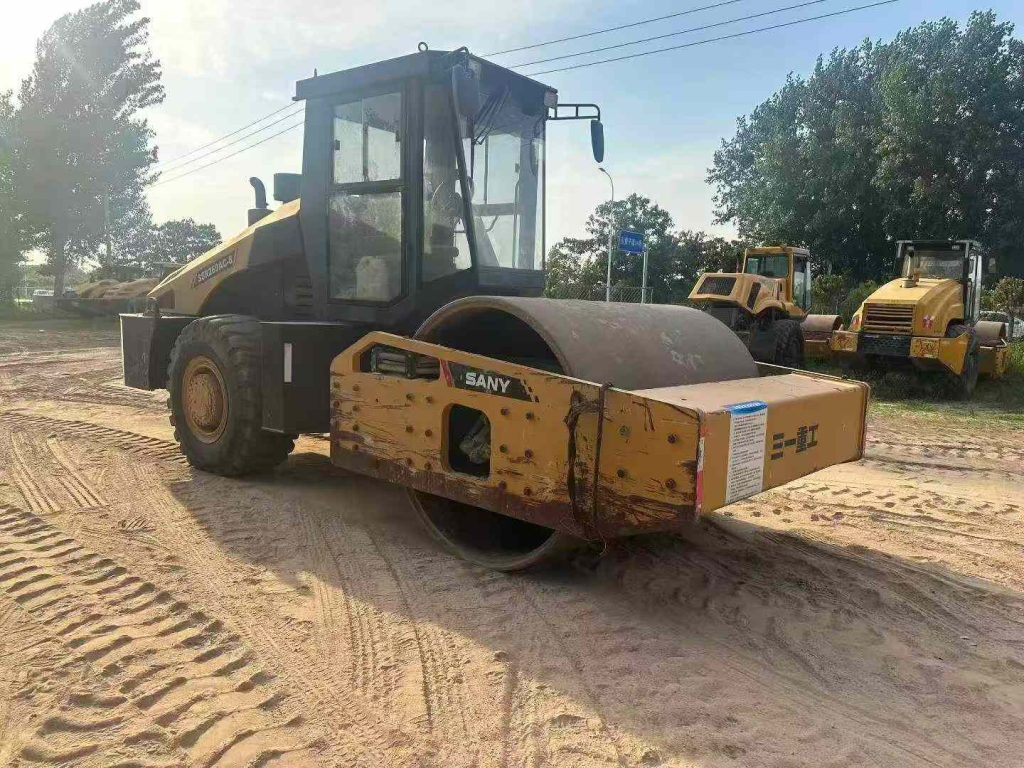

Overall Design & Structural Build The SSR260AC-8 features SANY’s latest family design language with bold, robust lines and the signature yellow-black professional livery. The heavy-gauge cold-rolled steel body undergoes cathodic electrophoresis anti-corrosion treatment, standing up to high temperatures, humidity, and coastal salt spray environments. The front-mounted 1700mm diameter vibratory drum is fabricated from wear-resistant alloy steel plate and supported by a four-point suspension system for uniform, stable vibration. With 440mm ground clearance and ±35° steering angle on the articulated frame, it balances excellent stability with agile maneuverability. Wide-opening service doors on both sides provide easy access to all daily maintenance points, while the 300L fuel tank supports extended uninterrupted operation.

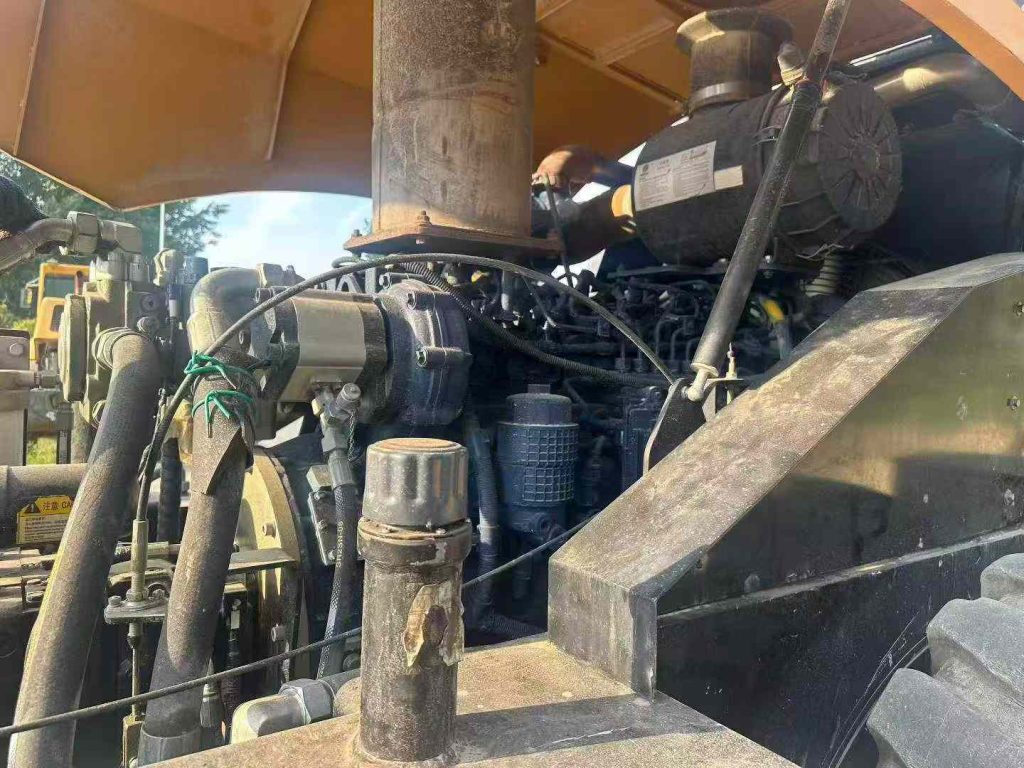

Engine & Powertrain Performance Powered by the Weichai WP6G200E331 six-cylinder water-cooled diesel engine delivering 147kW rated output, the SSR260AC-8 offers abundant power reserves with 30% gradeability and no power loss at high altitudes. The dedicated thermal management system enables continuous operation in extreme 46°C ambient temperatures without overheating — perfectly suited for tropical construction sites in the Middle East and Africa. A two-stage intake air filtration system protects critical components in dusty environments, while the optimized oil pan with 22L capacity significantly extends service intervals. Engineered fuel efficiency delivers lower fuel consumption per compacted cubic meter compared to competitors, providing clear long-term operating cost advantages.

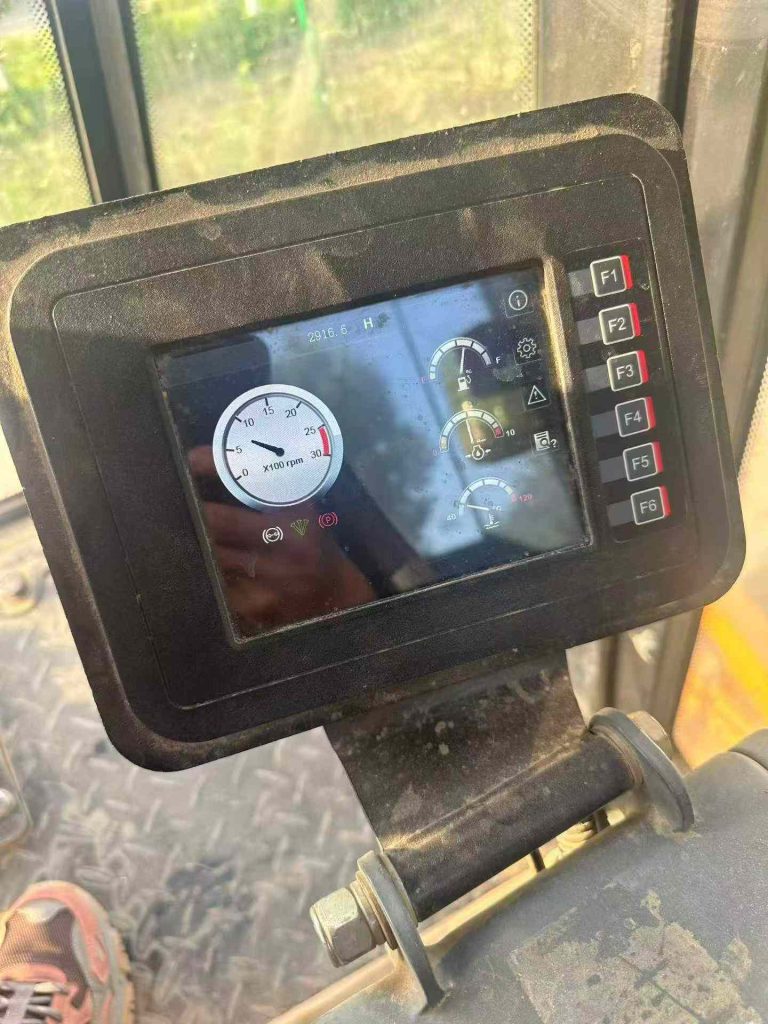

Operation & Driver Comfort The fully hydraulic single-drive system — with hydraulic vibration and steering on the front drum and hydraulic drive on the rear axle — delivers precise, smooth response. The dual-frequency, dual-amplitude design (27Hz/32Hz, 416kN/295kN) allows one-touch switching between deep compaction and finish rolling according to layer depth and material type. Two infinitely variable speed ranges ensure precision at low speed and efficient site transit up to 10km/h. The cabin is mounted on four-point floating isolation mounts, paired with an adjustable shock-absorbing seat and panoramic glass for excellent visibility, effectively isolating vibration and noise. The clearly laid-out instrument panel keeps all critical parameters in view, reducing operator fatigue during long shifts.

Overall Performance & Reliability Assurance Delivering 416kN of centrifugal force — 10% higher than comparable class models — the SSR260AC-8 increases productivity by 16.7% with fewer passes and faster compaction cycles. SANY’s patented water-wheel lubrication technology extends vibratory bearing life up to 5,000 hours, while the three-stage hydraulic filtration system boosts component durability across the board. Key hydraulic components are sourced from internationally recognized brands, and the modular design ensures low failure rates and simplified maintenance. Backed by SANY’s global service and spare parts network covering 150+ countries, overseas customers enjoy responsive after-sales support, strong residual value, and a short return on investment — making it the cost-effective choice for heavy compaction projects.

About Qianhui Construction Machinery
Qianhui Construction Machinery is a professional used construction machinery export supplier in China, specializing in wheel loaders, excavators, road roller ,bulldozers, rough terrain forklifts and other equipment. All machines go through strict pre-sale inspection to ensure transparent and reliable condition. We provide one-stop export services including on-site inspection, customs clearance, international logistics and full documentation, support OEM customization and attachment installation, and our products are sold to many emerging markets worldwide.
